Edit Bit String

Where You Can Find the Dialog Box

From the system tree, expand your BACnet device. From the Bitstring Values folder, select an object. In the Property Name column, double-click bit-mask.

What You Can Do with the Dialog Box

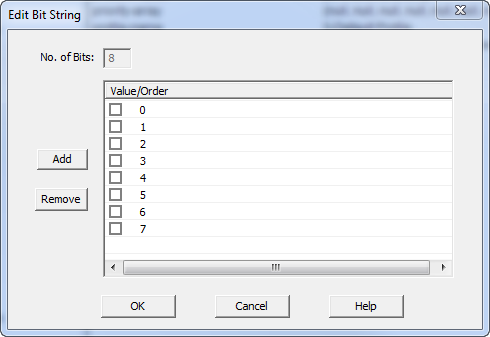

The Edit Bit String dialog box allows you to edit the Bit String.

Field/Button	Description
No. of Bits	Not editable. Displays the number of bits in the string.
Add	Allows you add a bit.
Remove	Allows you to remove a bit.
OK	Saves the information and exits the dialog box.
Cancel	Cancels the modifications and exits the dialog box.
