Edit Bit String List

Where You Can Find the Dialog Box

From the system tree, expand your BACnet device. From the Bitstring Values folder, select an object. In the Property Name column, double-click alarm-values.

What You Can Do with the Dialog Box

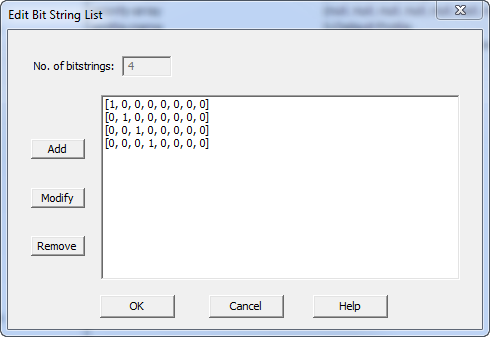

The Edit Bit String List dialog box allows you to add, modify, or remove bits from the Bit String list.

Field/Button	Description
No. of bitstrings	Non editable. Displays the number of bit strings.
Add	Allows you to add a bitstring to the list.
Modify	Allows you to modify an existing bit string.
Remove	Allows you to remove a bitstring from the list.
OK	Saves the information and exits the dialog box.
Cancel	Cancels the function and exits the dialog box.
