Edit Device Object Reference List

Where You Can Find the Dialog Box

From the system tree, expand your BACnet device. From the Schedules folder, select an object. In the Property Name column, right-click list-of-object-property-references, and select Write Property.

What you can do with the Dialog Box

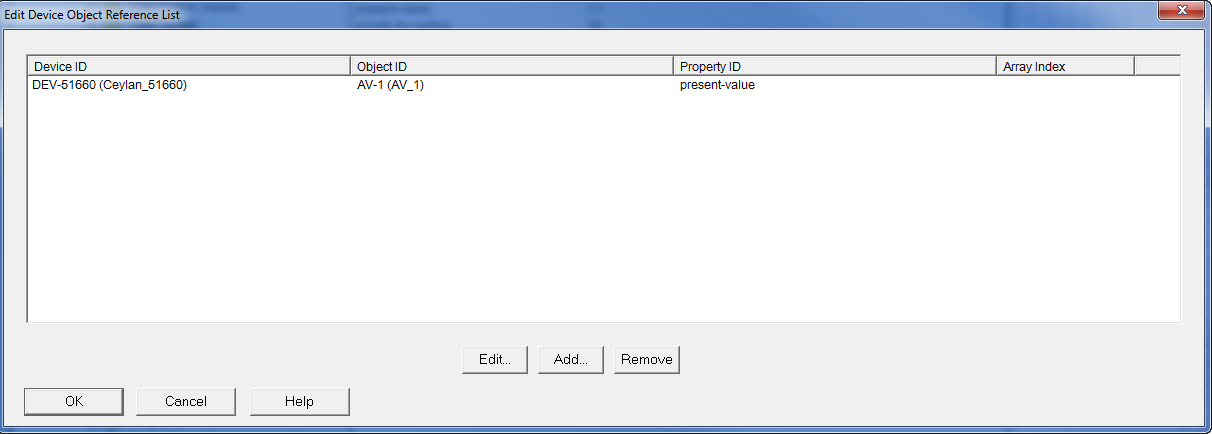

The Edit Device Object Reference List dialog box allows you to view, edit, add, and remove object reference information.

Field/Button	Description
Device ID	Displays the Device ID information.
Object ID	Displays the associated Object ID.
Property ID	Displays the associated Property ID.
Array Index	Displays the associated Array Index.
Edit	Displays the Edit Object Property Reference dialog box that displays the current values of the object properties and allows you to edit the object property references.
Add	Displays the Edit Object Property Reference dialog box and allows you to add new object property references.
Remove	Removes the current object property reference.
OK	Saves the information and exits the dialog box.
Cancel	Cancels the function and exits the dialog box.
