Edit Object ID

Where You Can Find the Dialog Box

From the system tree, expand your BACnet device. Expand the folder of the object you want to modify, and then select the object. Then, double-click the property name you want to modify.

Object Type	Property Name
Accumulator	logging-object object-identifier
Analog Inputs	object-identifier
Analog Outputs	object-identifier
Analog Values	object-identifier
Averaging Values	object-identifier
Binary Inputs	object-identifier
Binary Outputs	object-identifier
Binary Values	object-identifier
Bitstring Values	object-identifier
Calendars	object-identifier
Charstring Values	object-identifier
Channel Objects	object-identifier
Commands	object-identifier
Date Pattern Values	object-identifier
Date Values	object-identifier
Datetime Pattern Values	object-identifier
Datetime Values	object-identifier
Elevator Groups	group-members machine-room-id
Escalators	object-identifier elevator-group
Event Enrollments	object-identifier
Event Logs	object-identifier
Files	object-identifier
Global Groups	object-identifier
Groups	object-identifier
Integer Values	object-identifier
Large Analog Values	object-identifier
Life Safety Points	object-identifier
Life Safety Zones	object-identifier
Lighting Output	object-identifier
Lifts	object-identifier elevator-group higher-deck lower-deck
Load Controls	object-identifier
Loops	object-identifier
Multistate Inputs	object-identifier
Multistate Outputs	object-identifier
Multistate Values	object-identifier
Network Security Objects	object-identifier
Notification Class	object-identifier
Notification Forwarders	object-identifier
Octetstring Values	object-identifier
Positive Integer Values	object-identifier
Programs	object-identifier
Pulse Converter	object-identifier
Schedules	object-identifier
Time Pattern Values	object-identifier
Time Values	object-identifier
Trend Log Multiples	object-identifier
Trend Logs	object-identifier

What you can do with the Dialog Box

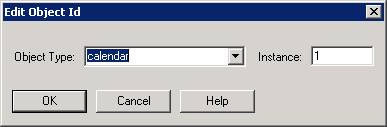

The Edit Object ID dialog box allows you to edit object IDs.

Field/Button	Description
Object Type	Allows you to enter the object type by clicking the drop-down arrow.
Instance	Where you enter the instance number for the object.
OK	Saves the information and exits the dialog box.
Cancel	Cancels the function.
