Edit Schedule Entry

Where You Can Find the Dialog Box

From the system tree, expand your BACnet device. From the Schedules folder, select an object. In the Property Name column, double-click weekly-schedule, and then double-click one of the schedules. In the Edit Schedule dialog box, select a day of the week, and then click Edit.

What you can do with the Dialog Box

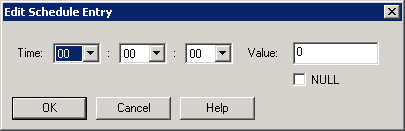

The Edit Schedule Entry dialog box allows you to edit only weekly schedule entries that have a simple value type such as a float, integer, unsigned, string, Boolean, etc.

Field/Button	Description
Time	Allows you to enter the time portion of the schedule entry for the command.
Value	Allows you to enter the value portion of the schedule entry to command to. Check the Null check box to indicate that the value you enter becomes the default value for the weekly schedule.
OK	Confirms your modifications to a schedule and exits the dialog box.
Cancel	Cancels the function and exits the dialog box.
