Edit Calendar Entry

Where You Can Find the Dialog Box

From the system tree, expand your BACnet device. From the Calendars folder, select an object. In the Property Name column, double-click date-list, and then double-click Single Date. From the Edit Date List dialog box, click Add.

What you can do with the Dialog Box

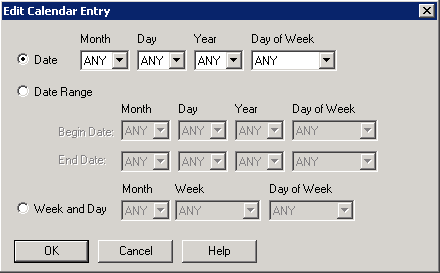

The Edit Calendar Entry dialog box allows you to add or modify calendar entries.

Field/Button	Description
Date	Allows you to modify the calendar date entry by a specific date.
Date Range	Allows you to modify the calendar date entry by begin and end dates.
Week and Day	Allows you to modify the calendar date entry by specific week and day. If you choose to leave the fourth drop-down field as the default ANY, the system would use only the date you specified and not the day. The default settings for these fields is ANY, a wildcard word that the software interprets to mean match any available date.
OK	Confirms your modifications and exits the dialog box.
