Edit Schedule
Where You Can Find the Dialog Box
From the system tree, expand your BACnet device. From the Schedules folder, select an object. In the Property Name column, double-click weekly-schedule, and then double-click one of the schedules.
What you can do with the Dialog Box

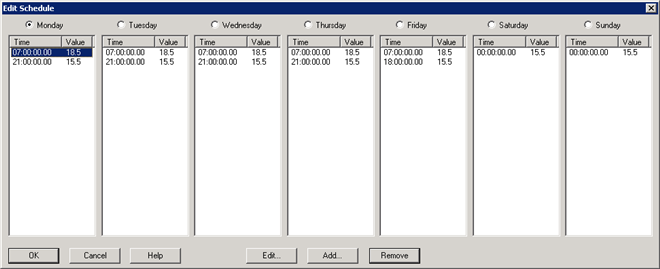

The Edit Schedule dialog box allows you to edit weekly schedules for the selected schedule object.
|
Field/Button |
Description |
|
Edit |
Allows you to modify day and time pairs. |
|
Add |
Allows you to add a day and time pair. |
|
Remove |
Allows you to remove a day and time pair. |
|
OK |
Confirms your modifications to a schedule and exits the dialog box. |
