Add/Remove List Element

Where You Can Find the Dialog Box

From the system tree, select your BACnet device, and then from the Services menu, select Add/Remove List Element.

What You Can Do with the Dialog Box

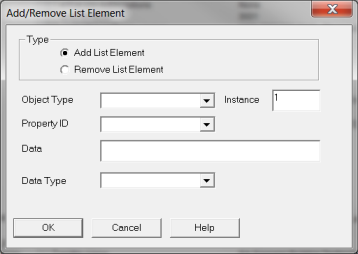

The Add/Remove List Element dialog box allows you to add list elements to an object in a device or remove list elements from an object in a device. The BACnet Object Browser only allows editing of simple data type lists.

Field/Button	Description
Add List Element	Check this button to add a list element to an object.
Remove List Element	Check this button to remove a list element from an object.
Object Type	Click the drop-down arrow to select an object type.
Instance	Enter the instance number of the object.
Property ID	Click the drop-down arrow to select a property ID type.
Data	Enter enumerated values separated by commas.
Data Type	Click the drop-down arrow to select the Enumerated, Real, Signed, or Unsigned data type.
OK	Saves the information and exits the dialog box.
Cancel	Cancels the function and exits the dialog box.
