Libraries Hierarchy and Customization Levels

Each library in the system is a collection of data related to specific system objects that are organized in specific customization levels:

  • L1-Headquarter
    Libraries protected by a specific license and supporting the core set of data.
  • L2-Region
    Libraries protected by a specific license and supporting international customizations and extensions.
  • L3-Country
    Libraries protected by a specific license and supporting regional customizations and extensions.
  • L4-Project
    Libraries protected by standard Desigo CC security and used for different customer-specific solutions. NOTE



Information

NOTE:
Desigo CC basic libraries (for example, Global) are included under the L1-Headquarter level. These libraries are available with installation and do not require any changes.

Headquarter libraries can be modified by Headquarter experts and Customer Support only.

Headquarter experts and Customer Support can handle any type of library. Other authorized experts (Region librarians, Country librarians, or Project engineers) can handle only the libraries for the allowed customization level. For details, see Customization Levels, below.



For the allowed customization level, authorized experts can:

  • Edit libraries according to the following schema.

Experts

Tasks

Headquarter experts

Edit libraries belonging to any level (L1-Headquarter, L2-Region, L3-Country, or L4-Project)

Customer Support

Region librarians

Edit libraries belonging to the L2-Region, L3-Country, or L4-Project level only.

Country librarians

Edit libraries belonging to the L3-Country or L4-Project level only.

Project engineers

Edit libraries belonging to the L4-Project level only.



  • Customize libraries (create new libraries by cloning the structure of a library from a higher to a lower library level) to better meet the customer’s needs, according to the following schema.

Customization Level

Task

Project

Customize L1-Headquarter, L2-Region, or L3-Country libraries under the L4-Project level.

Country

Customize L1-Headquarter or L2-Region libraries under the L3-Country level.

Region

Customize only L1-Headquarter libraries under the L2-Region level.

Headquarter

N/A



Libraries Location and Structure

System libraries are located under Project > System Settings > Libraries in Management View.

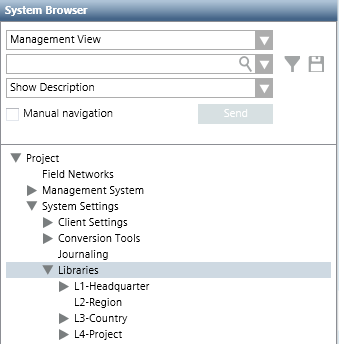

Libraries Hierarchy



Libraries Structure

Level

Description

Libraries

Root level including all the libraries available in Desigo CC.

L1-Headquarter

L2-Region

L3-Country

L4-Project

Any of the four main sub-levels, fixed and pre-defined in Desigo CC that cannot be removed. Depending on the customization level, authorized experts can manage discipline-specific libraries.

Library folder

Any of the discipline-specific sub-levels (for example, Global or Common) that contains libraries. Library folders are always located under the main sub-levels. Authorized experts can remove these folders.

Library object

Any system-specific library (for example, Base or Events) that contains library blocks. Each library is always located under its library folder. Depending on the customization level, authorized experts can manage library objects or customize libraries.

Library block

Any element (for example, Icons) composing a library. Depending on the customization level, authorized experts can manage library blocks or customize a limited set of library blocks.

Customization Levels

Basic system libraries (such as L1-Headquarter > Global > Base) are provided with the installation. Additional libraries can be imported, created or edited. How experts can work with libraries depends on the customization level that indicates what type of libraries authorized experts can customize (L1-Headquarter, L2-Region, L3-Country, or L4-Project).

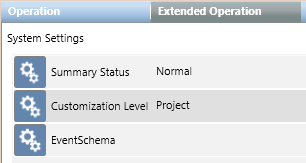

The customization level displays in the Extended Operation tab when you select System Settings in Management View of System Browser. For instructions, see Determining the Allowed Customization Level.





Information

NOTE:
The Customization Level is set to Project and you cannot change it.
If it is necessary to work with a customization level different from Project, contact Customer Support that is authorized to modify this setting.



Navigation Through Customized Libraries

When you click any customized library-related item contained in the Extended Related Items tab, the Secondary pane opens, displaying the Library Configurator with the settings for the selected related item. This workflow can be helpful for example to compare libraries data across customizations. It is also possible to customize the library displayed in the Secondary pane.
