Channel Present Value
Where You Can Find the Dialog Box
From the system tree, select your BACnet device. From the Channel Objects folder, select an object. In the Property Name column, double-click present-value.
What You Can Do with the Dialog Box

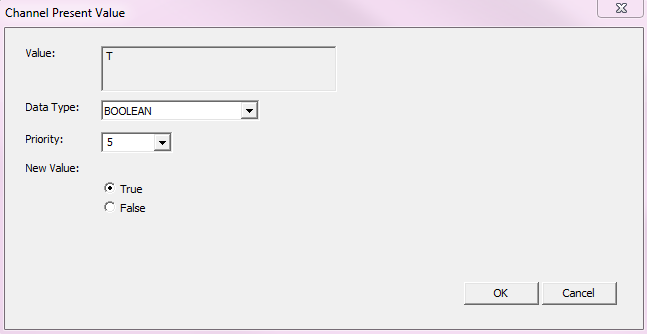

The Channel Present Value dialog box allows you to change the data type, priority, and value.
Field/Button | Description |
Value | Displays the value. |
Data Type | Allows you to select the data type. |
Priority | Allows you to enter one of the 16 BACnet priorities. |
New Value | Allows you to change the present value. |
OK | Confirms your modifications and exits the dialog box. |
Cancel | Cancels your modifications and exits the dialog box. |
