Edit Landing Call Status
Where You Can Find the Dialog Box
From the system tree, expand your BACnet device. From the Elevator Groups folder, select an object. In the Property Name column, double-click landing-call-control.
What You Can Do with the Dialog Box

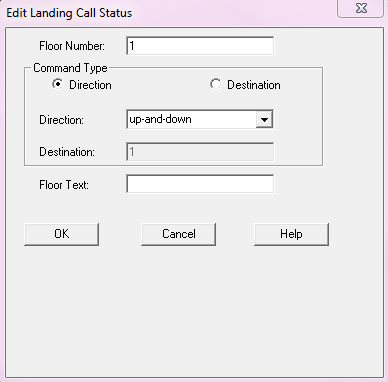

The Edit Landing Call Status dialog box allows you to edit the status of the landing call by specifying the floor number and command type.
Field/Button | Description |
Floor Number | The requested floor. |
Command Type | The direction and destination of the lift |
Direction | The direction the lift travels. |
Destination | The floor to which the lift is sent. |
Floor Text | (Optional) Note for the current command. |
OK | Confirms your modifications and exits the dialog box. |
Cancel | Cancels your modifications and exits the dialog box. |
