Edit Device Object Reference
Where You Can Find the Dialog Box
From the system tree, expand your BACnet device. From the Escalators folder, select an object. In the Property Name column, double-click energy-meter-ref.
What You Can Do with the Dialog Box

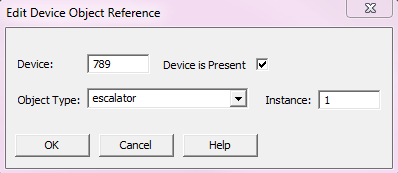

The Edit Device Object Reference dialog box allows you to change the instance number of the object.
Field/Button | Description |
Device | The name of the BACnet device. |
Device is Present | Allows you to select whether a device is present. |
Object Type | Displays a list of available object types. |
Instance | Displays the Instance number |
OK | Confirms your modifications and exits the dialog box. |
Cancel | Cancels your modifications and exits the dialog box. |
