Structured View Subordinate List
The Structured View object provides a container to hold references to subordinate objects, which may include other Structured View objects. This allows multilevel hierarchies to be created, which can convey a structure or organization such as a geographical distribution or application organization.
Subordinate objects may reside in the same device as the Structured View object or in other devices on the network. You build a structured view subordinate list by dragging the objects from the System Browser to this section.

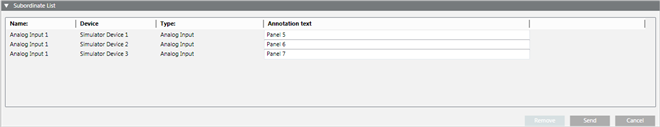

Field/Button | Description |
Name | Name of the object included in this list. |
Device | The device where the object resides. |
Type | The BACnet object type. |
Annotation text | Optional text that can be entered to describe the list member. |
Remove | Select one or more objects in the list and click this button to remove it. |
Send | Click this button to save any changes you have made. |
Cancel | Click this button to discard any changes you have made. |
