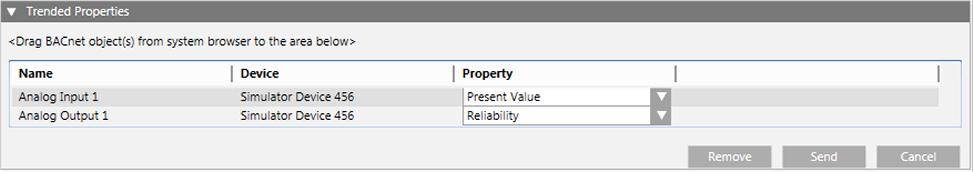

Trended Properties

This section displays the properties that a Trend Log or Trend Log Multiple collects. While only one property displays for Trend Logs, a Trend Log Multiple can have any number of trended properties.

When you drag-and-drop single or multiple objects into this section, the default property of the object displays in the Property field. To specify a different property for collection, click and select it from the drop-down menu.

With Trend Log Multiple, you can add the same object more than once to collect different properties. For example, you can add Analog Input 1 twice, specifying Present Value in the first instance and Status Flags in the second.

Field/Button	Description
Name	The object’s name.
Device	The device’s name.
Property	Lists all available properties for the object.
Remove	Select one or more objects in the list and click this button to remove them.
Send	Click this button to save any changes you have made.
Cancel	Click this button to discard any changes you have made.
